CBR600F4
I got this CBR for a very reasonable price from some friends in Baltimore. An associate of theirs had too much fun and too little understanding and overtightened the chain on a group ride. Result: shredded primary cover and waterpump, as well as a complete loss of oil while running.
I probably should've/could've torn it down first to take stock, but I got a bit trigger happy on eBay and got myself a low mileage bottom end and what I thought was a complete top end, planning to do a swap.
Well -- these things never go to plan, it's been a while, I and the bike have moved to NYC, I set up a workbench, the engine stand and bracket is almost complete, and we're digging in. So far, I'm missing cams and a waterpump. The rest remains to be sorted. Follow my progress.
Step 1: Pull the old engine

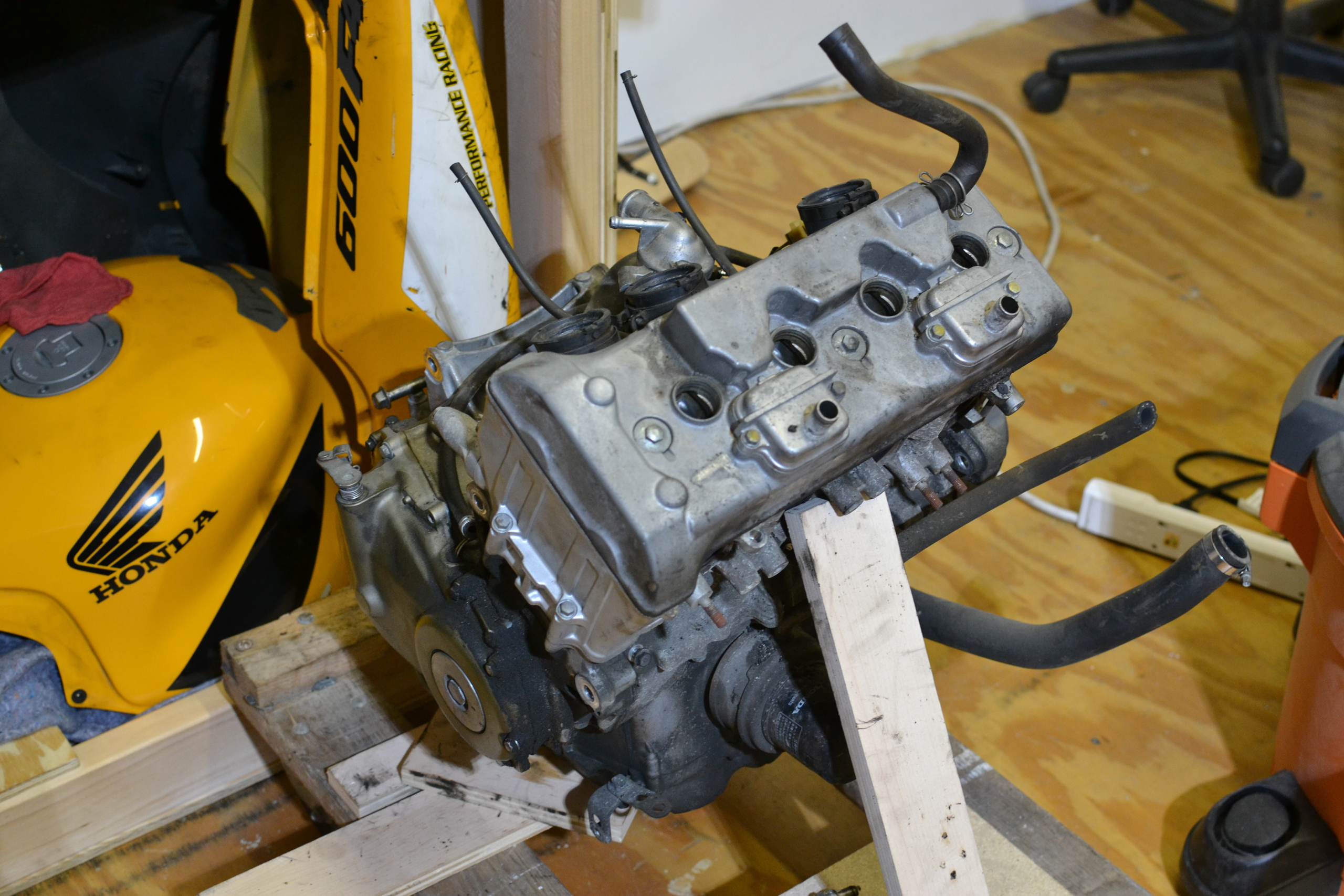

Engine came out surprisingly easily, was super grungy from spilled oil and road grime, but honda uses like a total of 3 different socket sizes, so all was gravy (major exception? the carb boots...)

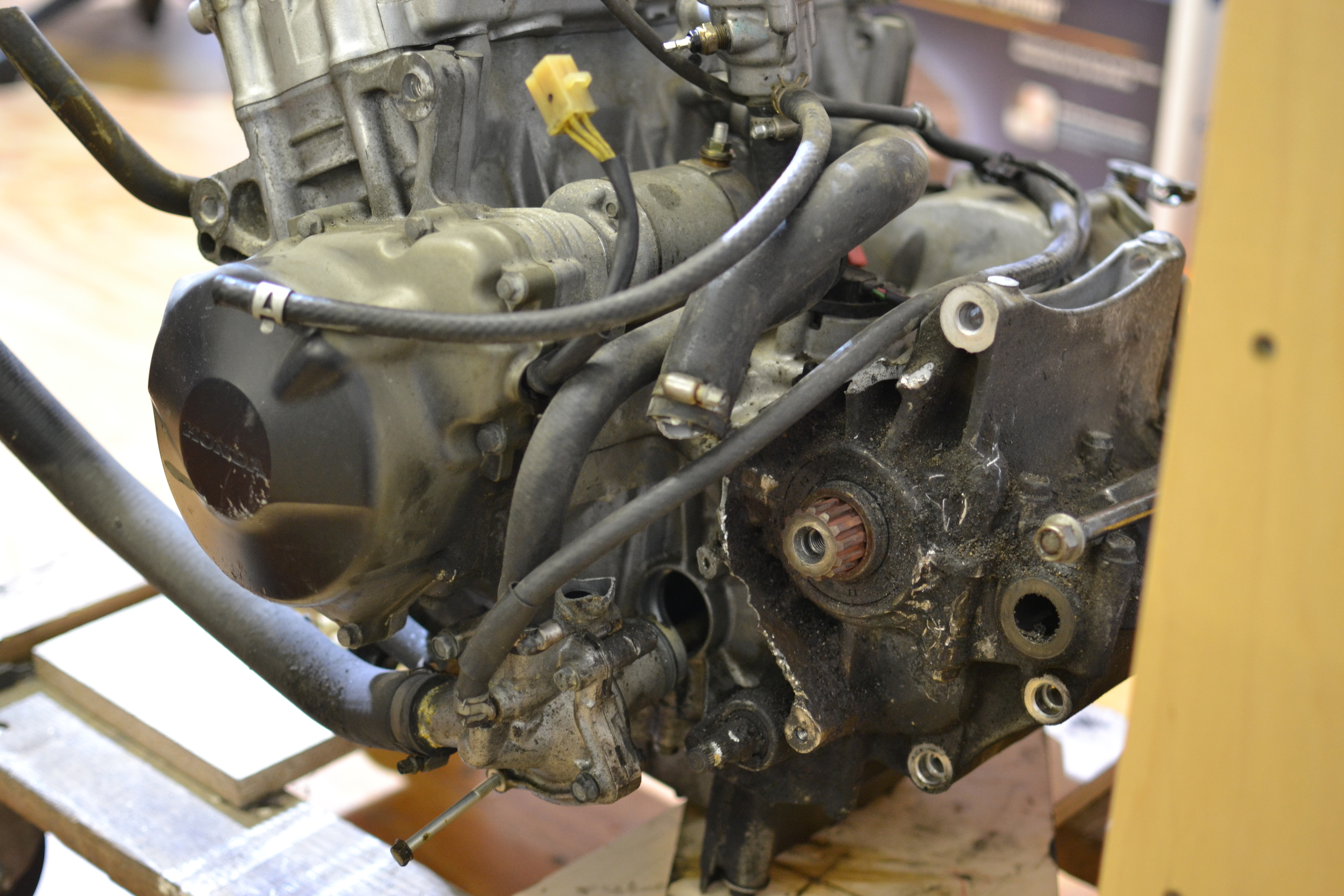

That's your problem, right there...
At first I thought the case was punctured, turns out just trimmed a bit - the oil came out when the water pump did - the chain completely sheared the waterpump mounting boss...
The new bottom end, left side
The new bottom end made the trip up well, looks pretty darn clean, save some surface rust from sitting for close to 2 years.
